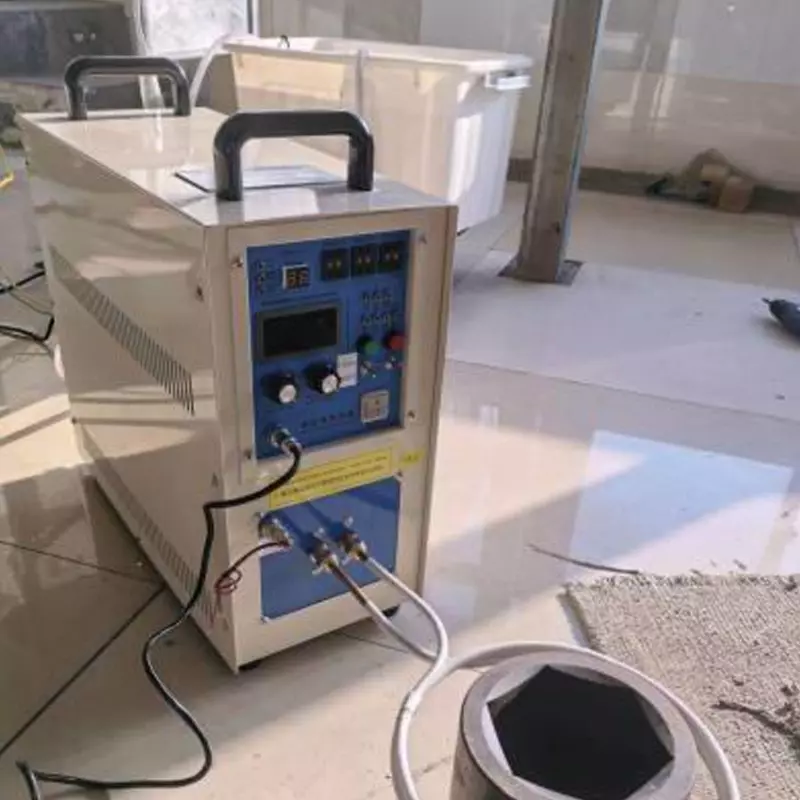

Used for heating various workpieces such as iron, stainless steel, copper, and aluminum.
Small in size and light in weight
Water cooling design
|
High-frequency model
|
GP-7
|
GP-15
|
GP-18
|
GP-25
|
GP-60
|
GP-80
|
GP-100
|
GP-120
|
GP-160
|
|
Apparent power
|
7KVA
|
15KVA
|
18KVA
|
25KVA
|
60KVA
|
80KVA
|
100KVA
|
120KVA
|
160KVA
|
|
Input current
|
32A
|
25A
|
30A
|
38A
|
98
|
130A
|
160A
|
195A
|
240
|
|
Input voltage
|
220V
|
380V
|
380V
|
380V
|
380V
|
380V
|
380V
|
380V
|
380V
|
|
Output frequency
|
30KHZ-80KHZ
|
|
Load duration rate
|
100% 24-hour continuous operation for work
|
|
Power supply weight
|
23Kg
|
29Kg
|
36Kg
|
58Kg
|
100Kg
|
128Kg
|
135Kg
|
229Kg
|
240Kg
|
|
High-frequency complete cooling water requirements
|
≥0.2Mpa
≥6/Min
|
≥0.2Mpa
≥6/Min
|
≥0.3Mpa
≥10/Min
|
≥0.3Mpa
≥10/Min
|
≥0.3Mpa
≥20/Min
|
≥0.3Mpa
≥20/Min
|
≥0.3Mpa
≥20/Min
|
≥0.5Mpa
≥30/Min
|
≥0.5Mpa
≥30/Min
|
|
Solid-state model
|
GPT-40
|
GPT-50
|
GPT-70
|
GPT-90
|
GPT-120
|
GPT-160
|
GPT-200
|
GPT-250
|
|
Apparent power
|
40KVA
|
50KVA
|
70KVA
|
90KVA
|
120KVA
|
160KVA
|
200KVA
|
250KVA
|
|
Input current
|
38A
|
62A
|
80A
|
105A
|
150A
|
200A
|
280A
|
350A
|
|
Input voltage
|
380V
|
380V
|
380V
|
380V
|
380V
|
380V
|
380V
|
380V
|
|
Output frequency
|
30KHZ-80KHZ
|
|
Load duration rate
|
100% 24-hour continuous operation for work
|
|
Power supply weight
|
44Kg+37Kg
|
44Kg+37Kg
|
50Kg+66Kg
|
61Kg+72Kg
|
91Kg+85Kg
|
110Kg+90Kg
|
110Kg+90Kg
|
130Kg+110Kg
|
|
High-frequency complete cooling water requirements
|
≥0.2Mpa
≥6/Min
|
≥0.2Mpa
≥6/Min
|
≥0.3Mpa
≥10/Min
|
≥0.3Mpa
≥10/Min
|
≥0.3Mpa
≥20/Min
|
≥0.3Mpa
≥20/Min
|
≥0.3Mpa
≥20/Min
|
≥0.5Mpa
≥30/Min
|
